Tank
LPG Autogas Storage Tank
| DESIGN CODES | AD 2000 |
| EN 13445 | |
| ASME SEC. VIII DIV.1 | |
| DESIGN PRESSURE | 17,16 Bar |
| TEST PRESSURE | 25,74 Bar |
| Product Code Ürün Kodu كود المنتج |
Volume(Liters) Hacim (Litre) السعة (لتر) |

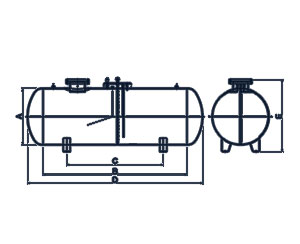

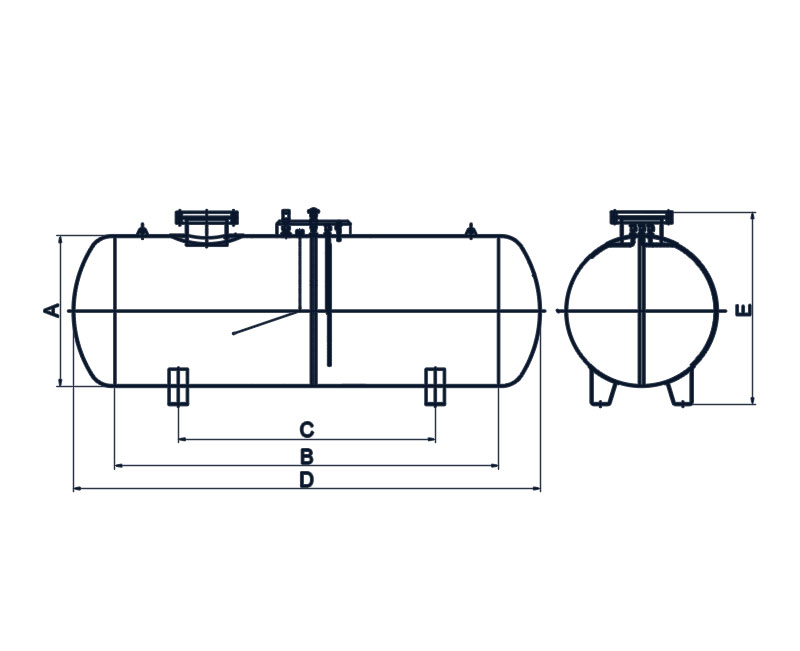

A (mm) |
B (mm) |
C (mm) |
D (mm) |
E max (mm) |
|---|---|---|---|---|---|---|
| LAT 5000 | 5000 | 1200 | 4000 | 2000 | 4725 | 1400 |
| LAT 7000 | 7000 | 1600 | 3000 | 1500 | 3900 | 1600 |
| LAT 10000 | 10000 | 1600 | 4500 | 3300 | 5392 | 1800 |
| LAT 10000 | 10000 | 1900 | 2850 | 1850 | 3974 | 2050 |
| LAT 15000 | 15000 | 1900 | 3300 | 1850 | 4424 | 2050 |
| LAT 22000 | 22000 | 2350 | 4500 | 3300 | 5745 | 2550 |
Standart ürünlerimiz dışındaki farklı ölçü talepleriniz için lütfen bizimle iletişime geçin.
br>Above mentioned items are our standard products, please contact us for different sizes
Above mentioned items are our standard products, please contact us for different sizes.
